What is a Sapphire Optical Window?

Table of Contents

1. Introduction to Sapphire Optical Windows



2. Key Properties of Sapphire Optical Windows

   • Hardness and Durability

   • Optical Clarity and Transmission

   • Thermal and Chemical Resistance

3. Manufacturing and Design Options

   • Shapes and Sizes

   • Surface Finishes and Coatings

4. Applications of Sapphire Optical Windows

   • Aerospace and Defense

   • Medical and Scientific Instruments

   • Semiconductor and Laser Systems

   • Industrial and Consumer Electronics

5. Advantages Compared to Other Optical Materials

   • Comparison Table: Sapphire vs Glass vs Quartz

6. Buying Guide: Choosing the Right Sapphire Optical Window

7. Future Trends in Sapphire Optical Windows

8. Conclusion

1. Introduction to Sapphire Optical Windows

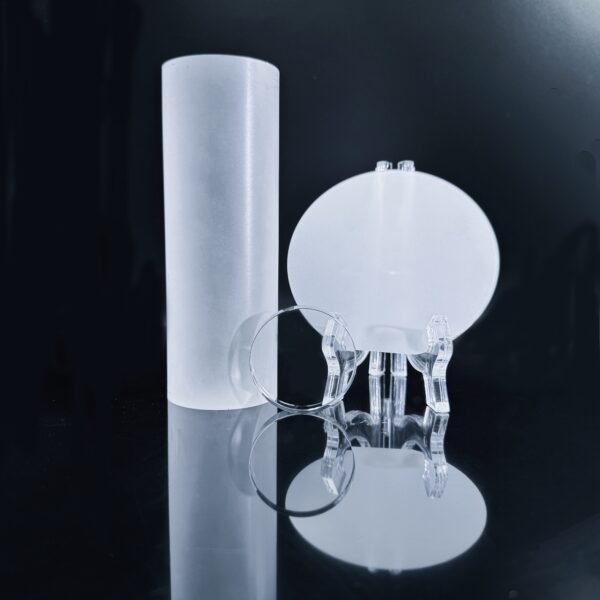

A sapphire optical window is a transparent protective component made from crystalline aluminum oxide. Engineers design these windows to allow light to pass while shielding sensitive systems from physical, chemical, and thermal damage. Because sapphire combines optical clarity with mechanical strength, it serves as a preferred material for demanding optical applications. Furthermore, sapphire optical windows maintain performance across ultraviolet, visible, and infrared wavelengths, which makes them versatile.

2. Key Properties of Sapphire Optical Windows

Hardness and Durability

Sapphire ranks 9 on the Mohs hardness scale, second only to diamond. Consequently, sapphire optical windows resist scratches from almost all natural materials. You can handle them in abrasive environments without worrying about surface degradation. Additionally, sapphire maintains mechanical integrity even under heavy loads and impacts.

Optical Clarity and Transmission

Sapphire optical windows transmit light from 150 nm in the ultraviolet region to 5.5 μm in the infrared region. This broad spectrum allows engineers to use them in multiple optical instruments. Moreover, sapphire exhibits low birefringence and high refractive index, which supports precise imaging and accurate signal detection.

Thermal and Chemical Resistance

Because sapphire withstands temperatures above 2000 °C, it functions reliably in furnaces, aerospace engines, and high-power laser setups. Furthermore, sapphire optical windows resist acids, alkalis, and solvents, so they survive environments where glass or quartz would dissolve. This combination of properties ensures long service life.

3. Manufacturing and Design Options

Shapes and Sizes

Manufacturers supply sapphire optical windows in standard circular and rectangular forms, although custom shapes are common. Thickness ranges from 0.1 mm to several millimeters, depending on the application. In fact, sapphire optical windows often replace multiple layers of glass because one sapphire window delivers equal or better performance.

Surface Finishes and Coatings

Surface finishing significantly improves optical performance. Polished sapphire achieves surface roughness under 0.3 nm, which reduces scattering. Anti-reflective coatings lower reflection losses and increase transmission efficiency. In addition, conductive or hydrophobic coatings provide functional enhancements.

4. Applications of Sapphire Optical Windows

Aerospace and Defense

In aerospace systems, sapphire optical windows protect sensors, cameras, and navigation systems. Because aircraft and missiles encounter high speed, vibration, and heat, sapphire offers unmatched reliability. Moreover, sapphire optical windows handle sudden pressure changes and impacts better than glass alternatives.

Medical and Scientific Instruments

Sapphire optical windows play a crucial role in surgical lasers, endoscopes, and spectroscopy tools. Since medical devices must withstand sterilization cycles with steam or chemicals, sapphire proves ideal. Scientists also use sapphire windows in X-ray and particle analysis because clarity across multiple wavelengths ensures accuracy.

Semiconductor and Laser Systems

In semiconductor fabrication, sapphire optical windows cover inspection tools, etching chambers, and deposition systems. Because they resist plasma and corrosive gases, they extend system uptime. Furthermore, laser engineers rely on sapphire for high-power optics since sapphire endures intense beams without damage.

Industrial and Consumer Electronics

You find sapphire optical windows in barcode scanners, high-end watches, smartphones, and even underwater cameras. Consumers appreciate scratch resistance, while industries value consistent performance under stress.

5. Advantages Compared to Other Optical Materials

Why Sapphire Optical Windows Outperform Glass and Quartz

Although glass and fused quartz serve many optical applications, sapphire surpasses them in hardness, durability, and spectral range. Consequently, industries that prioritize long-term performance and precision select sapphire first.

Comparison Table: Sapphire vs Glass vs Quartz

As the table shows, sapphire optical windows deliver superior durability and transmission performance, although cost remains higher. Still, long service life often justifies the investment.

6. Buying Guide: Choosing the Right Sapphire Optical Window

When you select sapphire optical windows, you should consider several factors:

1. Thickness: Thicker windows support high-pressure environments but may reduce transmission slightly.

2. Flatness: Precision optics require high flatness for minimal distortion.

3. Coating Type: Anti-reflective coatings improve efficiency, while conductive coatings support electronic integration.

4. Spectral Range: Confirm the window supports the wavelengths of your system.

5. Environment: Match chemical and thermal resistance with your application.

Furthermore, you must balance cost with application requirements. Because sapphire provides extended lifespan, many companies recover the investment quickly.

7. Future Trends in Sapphire Optical Windows

The future of sapphire optical windows looks promising. Researchers explore nano-structured coatings that enhance transmission and reduce reflections further. Additionally, integration with adaptive optics improves imaging quality in aerospace and defense. Since demand for high-power lasers and semiconductor devices continues to rise, sapphire optical windows will dominate next-generation optics. Moreover, space exploration missions already adopt sapphire windows for durability in extreme environments.

8. Conclusion

Sapphire optical windows deliver a rare combination of strength, clarity, and resistance. Because they outperform glass and quartz across nearly every category, industries increasingly adopt them for aerospace, defense, medical, semiconductor, and consumer applications. Furthermore, technological innovations promise even greater performance. Therefore, when precision, durability, and reliability matter, sapphire optical windows represent the optimal choice.
