Product Introduction

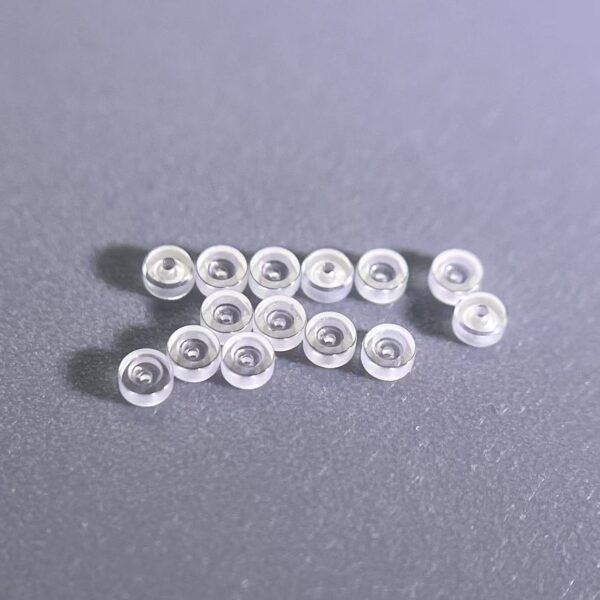

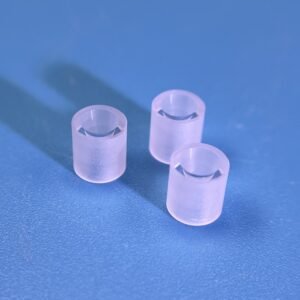

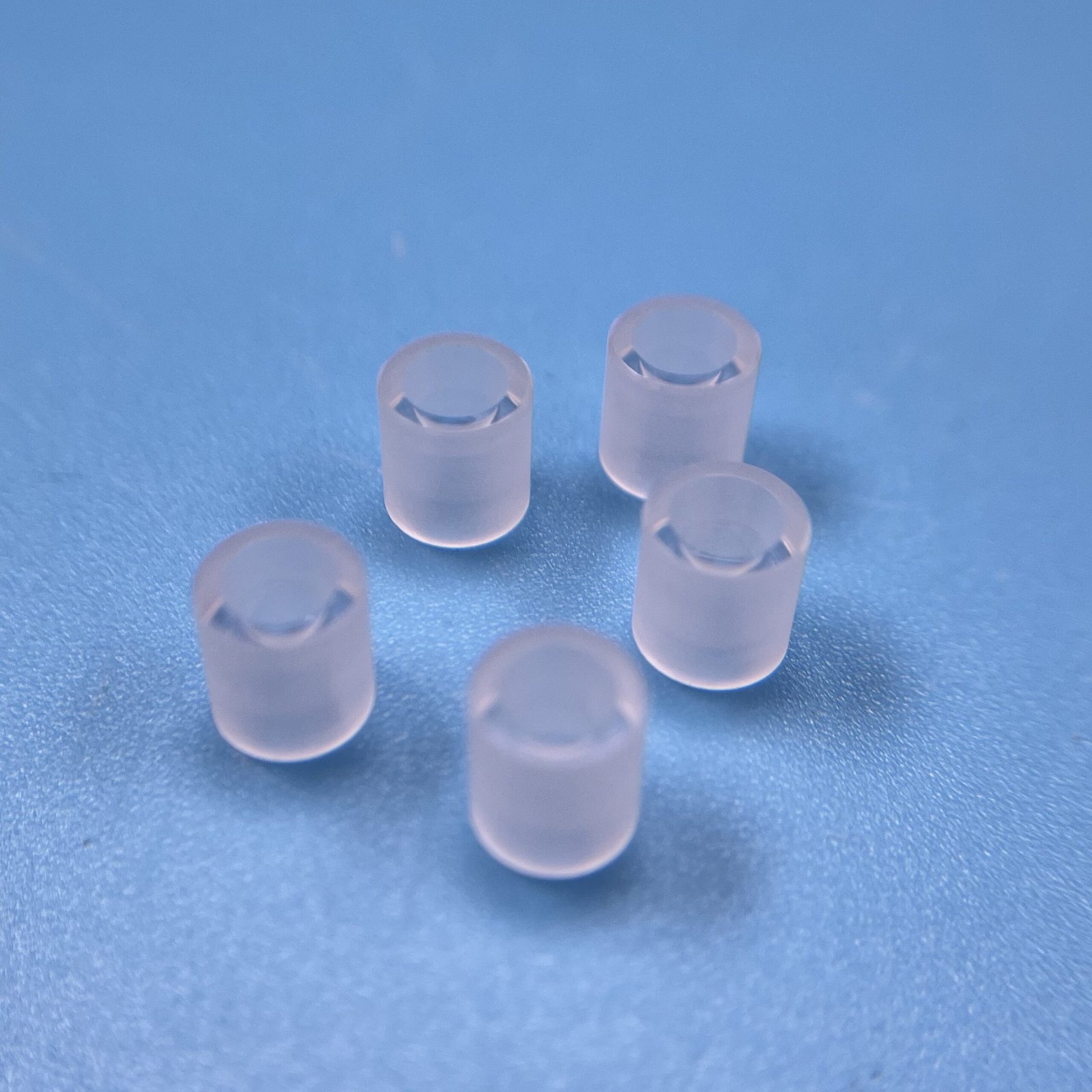

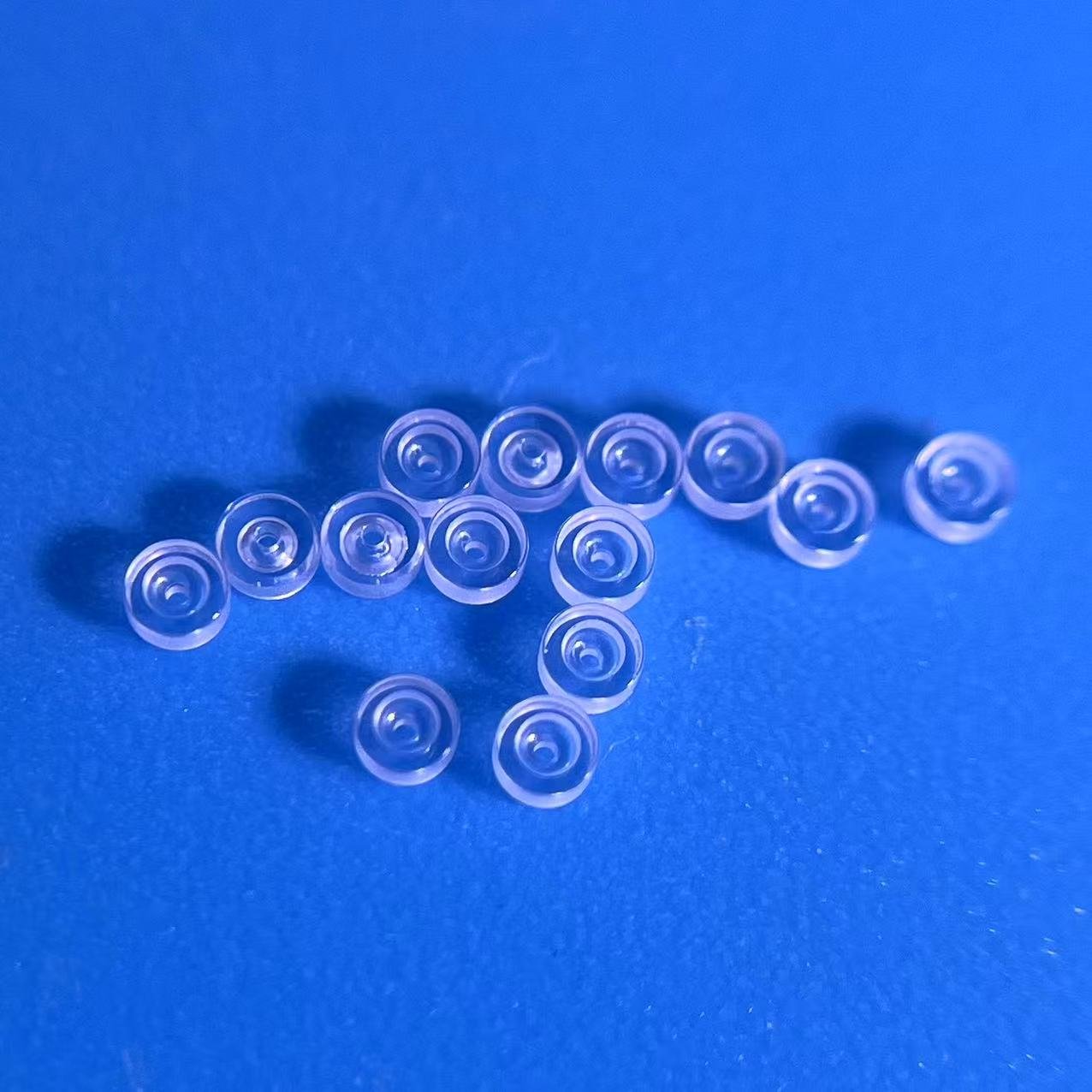

We manufacture transparent sapphire bearings using high-purity synthetic single crystal aluminum oxide (Al₂O₃). With exceptional hardness, outstanding wear resistance, superior thermal stability, and excellent optical transmission, our sapphire bearings deliver reliable performance in high-end mechanical systems and demanding industrial environments.
In addition to strong mechanical properties, transparent sapphire provides remarkable clarity across UV, visible, and infrared wavelengths. Therefore, you can use our sapphire bearings in applications that require both structural reliability and optical inspection. Because the crystal structure remains stable and uniform, our transparent sapphire bearing maintains long-term dimensional accuracy and smooth rotational performance.
Moreover, we ensure that every sapphire bearing resists corrosion, withstands high temperatures, and performs consistently in vacuum or chemically aggressive environments.
Material Characteristics
We select 99.99% purity synthetic Al₂O₃ to guarantee consistent material quality. Transparent sapphire offers the following properties:
Material: 99.99% synthetic Al₂O₃
Color: Optical grade transparent / colorless
Crystal Structure: Hexagonal (Trigonal system)
Density: 3.98 g/cm³
Mohs Hardness: 9
Melting Point: ~2050°C
Electrical Insulation: Excellent dielectric strength
Chemical Stability: Strong resistance to acids and alkalis
Because of these properties, our transparent sapphire bearings maintain structural integrity even under extreme mechanical stress and thermal conditions. Furthermore, we polish the surface to optical grade (Ra ≤ 0.02 μm), which significantly reduces friction and improves service life.
Manufacturing Process
We control every production step to ensure precision and consistency.
First, we grow high-quality single crystal sapphire using advanced KY or CZ crystal growth technology. Next, we slice and core the crystal into precise bearing blanks. Then, our engineers perform CNC machining and micro-grinding to achieve accurate inner and outer diameters.
After machining, we apply fine lapping and mirror polishing to achieve ultra-smooth surfaces. Finally, our quality control team inspects dimensions, concentricity, and surface finish before shipment.
Through this strict manufacturing process, we deliver sapphire bearings that meet demanding tolerance and performance requirements.
Technical Specifications
We offer flexible customization based on your drawings or application needs:
Outer Diameter (OD): 0.5 mm – 50 mm
Inner Diameter (ID): High-precision micro-hole machining available
Thickness: Fully customizable
Tolerance: Up to ±0.005 mm
Surface Roughness: Ra ≤ 0.02 μm

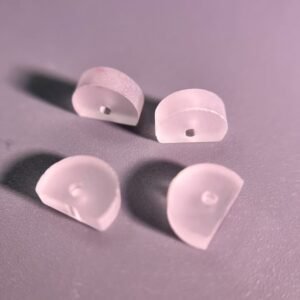

Structure Options: Through-hole, blind-hole, stepped, flanged
In addition, we can develop special geometries and structural designs to match specific operational environments.
Key Advantages of Our Transparent Sapphire Bearings
1. Exceptional Wear Resistance
We leverage sapphire’s Mohs 9 hardness to ensure long service life and minimal deformation during continuous operation.
2. High Dimensional Stability
Our sapphire bearings maintain precise tolerances even under temperature fluctuations or mechanical load.
3. Low Friction Performance
We polish each bearing to reduce rotational resistance, thereby improving overall system efficiency.
4. High Temperature Capability
Our sapphire components withstand elevated temperatures without losing structural integrity.
5. Chemical & Corrosion Resistance
We provide bearings that resist moisture, acids, and aggressive chemicals, reducing maintenance costs and downtime.
Application Fields
We supply transparent sapphire bearings for a wide range of high-precision industries.
Precision Instruments
Engineers use our sapphire bearings in flow meters, measuring devices, and analytical equipment to ensure stable and accurate motion.
Semiconductor Equipment
Semiconductor manufacturers integrate our sapphire bearings into wafer handling systems, vacuum assemblies, and high-temperature processing tools.
Medical Devices
Medical equipment producers rely on our sapphire bearings for micro-pumps, diagnostic instruments, and precision surgical systems.
Aerospace & Advanced Engineering
Aerospace engineers choose sapphire bearings for systems that demand reliability under extreme temperature and pressure conditions.

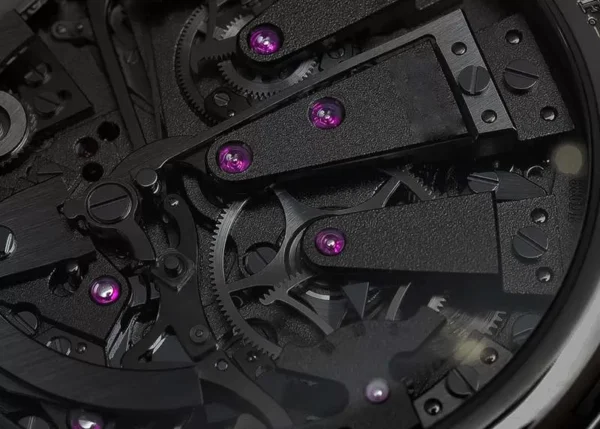

Watch & Micro-Mechanical Systems
Watchmakers and precision engineers use sapphire bearings to reduce friction and extend operational lifespan.

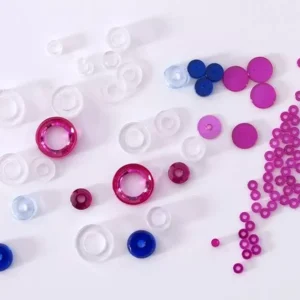

Sapphire and Ruby Bearing Supply
In addition to transparent sapphire bearings, we also manufacture synthetic ruby bearings using chromium-doped single crystal aluminum oxide. Ruby bearings provide the same hardness and wear resistance while offering a distinctive red appearance. Therefore, you can select the material that best fits your functional or design requirements.

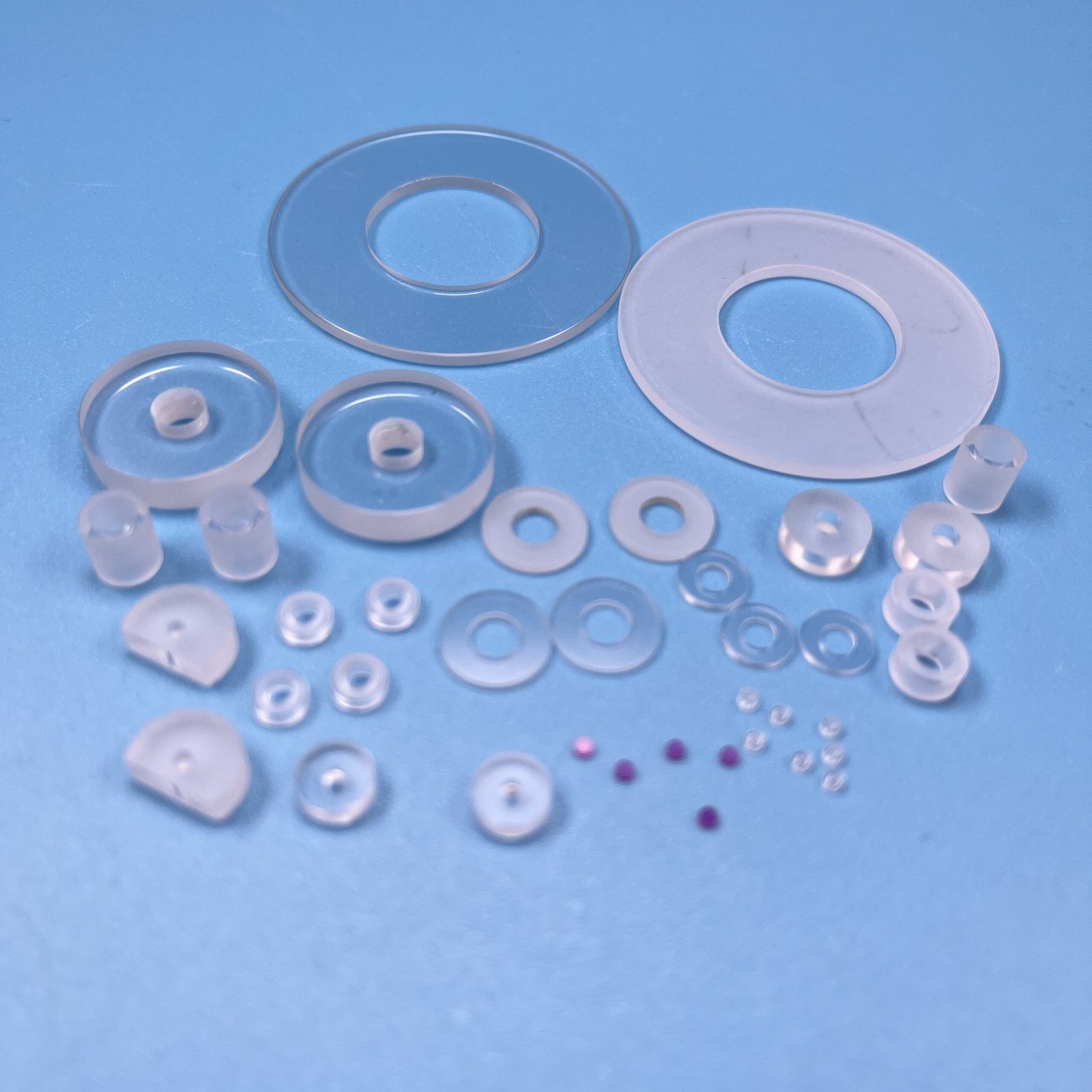

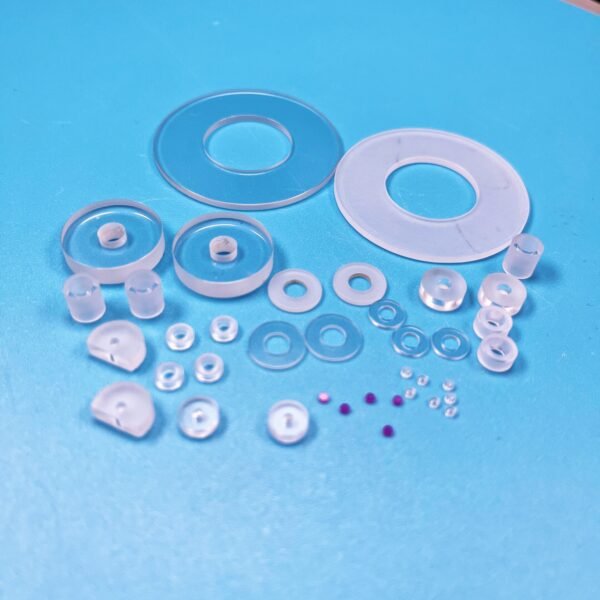

Furthermore, we produce customized sapphire and ruby precision components such as bushings, washers, sleeves, and other high-precision parts.
Why Choose Us as Your Sapphire Bearing Supplier?
We use optical-grade raw materials and implement strict purity control. Our advanced machining equipment ensures tight tolerance and superior surface finish. Additionally, we provide OEM and ODM services, allowing full customization according to your technical drawings.
At the same time, our quality control system guarantees consistent product performance. Finally, we support global shipping and provide competitive factory pricing for long-term cooperation.
FAQ – Transparent Sapphire Bearing
Q1: What applications suit transparent sapphire bearings best?
Our sapphire bearings perform best in high-precision rotating systems that require durability, stability, and corrosion resistance.
Q2: Can you customize sapphire bearings according to drawings?
Yes. We manufacture fully customized sapphire bearings based on your specifications.
Q3: Can sapphire bearings operate in high-temperature environments?
Yes. Our sapphire bearings maintain structural stability at elevated temperatures.
Q4: Do you also supply ruby bearings?
Yes. We produce synthetic ruby bearings in addition to transparent sapphire bearings for precision mechanical applications.
