sapphire wafer 4inch 6inch epi ready

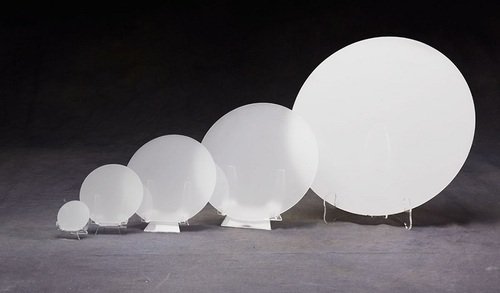

Premium 4-inch and 6-inch Sapphire Wafers (Epi-Ready) for High-Performance Applications
When it comes to advanced materials for semiconductor and LED, and optical applications, sapphire wafers take the lead. Available in 4-inch and 6-inch sizes, our epi-ready sapphire wafers are engineered to meet the growing needs of modern industries. Whether you need substrates for epitaxial growth or optical devices and these wafers deliver top-tier performance and reliability.
Why Choose Our 4-inch and 6-inch Epi-Ready Sapphire Wafers?
Sapphire wafers play a crucial role in epitaxial growth processes.
Specifically, the 4-inch and 6-inch epi-ready sapphire wafers are ideal for applications .
demand high crystal quality and smooth surfaces and precise alignment.
As a result, also industries widely use them in LED production, laser diodes, RF devices,and sensor applications.
These epi-ready sapphire wafers feature a defect-free surface and which is essential for epitaxial deposition. Consequently, they ensure high-quality layers that enhance device performance and longevity.
our specification
| Item | Specifications |
|---|---|
| Diameter | Φ1mm ～ Φ50mm, Φ75mm, Φ100mm, Φ125mm, Φ175mm, Φ200mm |
| Material | Artificial sapphire (Al₂O₃ ≥ 99.99%) |
| Thickness | 0.5mm ～ 1mm, 5mm, 10mm |
| Orientation | c-plane (0001) |
| Fronside finishing | Polish (Ra<0.3nm) |
| Backside finishing | Polish (Ra<0.3nm) |
| Remarks | Customizable specifications: diameter, thickness, orientation, etc. Other options: re-polishing |
| Item | Specifications |
|---|---|
| Diameter | □1mm ～ □25mm, □50mm, □75mm, □100mm, □125mm, □150mm |
| Material | Artificial sapphire (Al₂O₃ ≥ 99.99%) |
| Thickness | 0.5mm ～ 1mm, 5mm, 10mm |
| Orientation | c-plane (0001) |
| Frontside finishing | Polish (Ra<0.3nm) |
| Backside finishing | Polish (Ra<0.3nm) |
| Remarks | Customizable specifications: diameter, thickness, orientation, etc. Other options: re-polishing |
Exceptional Material Properties of Sapphire Wafers
Sapphire (Al2O3), a single crystal form of aluminum oxide, stands out in high-tech applications. It offers several outstanding properties, such as:
High hardness: Sapphire ranks as the second hardest material after diamond. This quality makes the wafers highly resistant to wear and tear.
Thermal conductivity: Sapphire efficiently dissipates heat, which is critical for high-power devices like LEDs and lasers.
Optical transparency: Sapphire allows transmission of UV, visible, and infrared light, making it ideal for optical sensors and displays.
Electrical insulation: Sapphire’s very low electrical conductivity makes it perfect for electronic and photonic applications requiring electrical isolation.
These superior properties guarantee that sapphire wafers perform better than many other materials in demanding applications.
Applications of 4-inch and 6-inch Epi-Ready Sapphire Wafers
The 4-inch and 6-inch epi-ready sapphire wafers are vital in several high-tech industries. Below are some of the key applications:
LED Manufacturing: Thanks to their excellent crystal structure and smooth surface, these wafers serve as reliable substrates for LED epitaxy processes. As a result, they ensure efficient light emission and extend the LEDs’ lifespan.
Laser Diodes and Optoelectronics: Sapphire wafers support the growth of semiconductor layers in laser diodes. Consequently, they boost device efficiency and performance.
High-Frequency Devices: Sapphire’s insulating and thermally conductive properties make these wafers perfect for RF components in mobile phones, GPS systems, and wireless communication technologies.
Sensors: Sapphire wafers excel in high-temperature environments, making them ideal for sensors used in a wide range of fields, including automotive, industrial, and medical applications.
Epi-Ready: Perfect for Epitaxial Growth
Epitaxial growth is essential in semiconductor manufacturing. Epi-ready sapphire wafers are meticulously prepared to have a polished, defect-free surface. This preparation makes them perfect for epitaxial deposition, ensuring top-quality layers for devices such as LEDs, power electronics, and laser diodes.
Additionally, 4-inch and 6-inch epi-ready sapphire wafers come in various orientations including C-plane (0001), M-plane (10-10), and A-plane (11-20). This flexibility allows manufacturers to choose the orientation that best fits their production needs.
Why Choose Us for Your Sapphire Wafer Needs?
When selecting 4-inch and 6-inch sapphire wafers it is crucial to partner with a trusted supplier that delivers consistent, high-quality products. Our sapphire wafers undergo precise fabrication techniques to ensure consistent thickness, low defect density, and superior flatness.
We offer competitive pricing without compromising quality. Furthermore, we provide customized services, including wafer orientation, doping, and specific surface treatments. Our epi-ready sapphire wafers meet the highest industry standards, ensuring reliability and consistency for all your applications.
Conclusion: Invest in Quality with Our Epi-Ready Sapphire Wafers
In conclusion, 4-inch and 6-inch epi-ready sapphire wafers are essential for high-performance technologies like LEDs, laser diodes and optical sensors, and RF devices. Their superior material properties, combined with the ability to support high-quality epitaxial growth, make them the perfect solution for various advanced applications.
By choosing our epi-ready sapphire wafers, you are investing in the reliability and performance of your devices. Contact us today to explore how our sapphire wafers can meet your manufacturing needs and help elevate your products.
