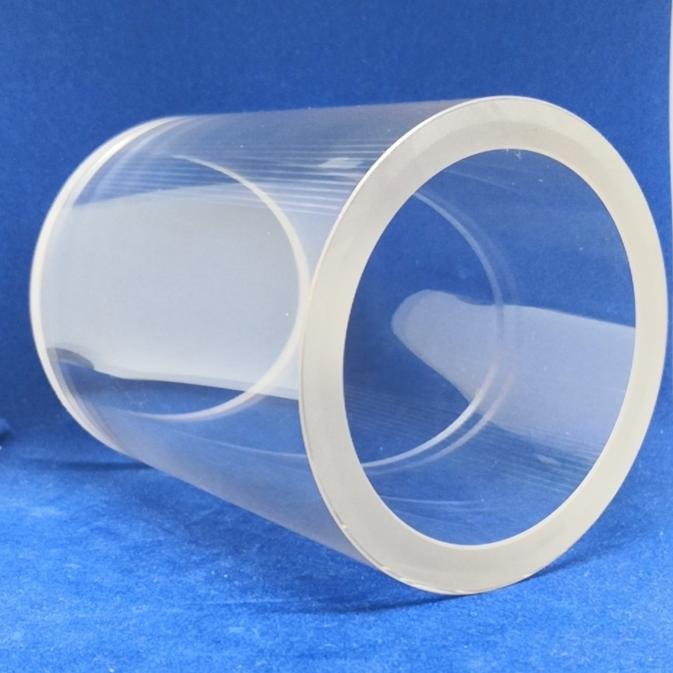

Overview of Transparent Polished Sapphire Tube

Our Transparent Polished Sapphire Tube is engineered with precision to meet the demanding requirements of modern industries. Made from high-purity single-crystal sapphire (Al₂O₃), this tube combines excellent optical clarity with exceptional mechanical strength. The material is second only to diamond in hardness, ensuring outstanding wear resistance and long service life.

Manufacturing Process of Sapphire Tubes

We follow a strict and advanced process to produce high-quality transparent sapphire tubes. Every step combines precision machining with rigorous inspection to guarantee strength, clarity, and reliability.

  1. Crystal Growth
    We melt high-purity aluminum oxide (Al₂O₃) and grow it into large single-crystal sapphire boules using Kyropoulos (KY) or Heat Exchange Method (HEM). Our engineers carefully control temperature and cooling rates to achieve a uniform and defect-free crystal.

  2. Cutting and Shaping
    We cut the sapphire boules into cylindrical blanks with diamond wire saws. Then, we shape the blanks into rough tubes by using ultrasonic drilling and machining.

  3. Precision Grinding
    Our technicians grind both the outer diameter (OD) and inner diameter (ID) with diamond grinding tools. We maintain strict tolerances to ensure accurate dimensions, concentricity, and wall thickness.

  4. Fine Polishing
    We polish the tube step by step with graded diamond slurry. Our polishing process removes micro-scratches, improves transparency, and delivers a clear, smooth surface inside and outside the tube.

  5. Inspection and Testing
    We examine every sapphire tube under high-resolution optical microscopes. We also measure dimensions, check transparency, and test mechanical strength. Our team eliminates any tube that does not meet the highest standards.

  6. Customization
    We adjust the design according to customer needs. We can make sapphire tubes with open or closed ends, beveled edges, and different wall thicknesses, all tailored for optical, medical, or industrial use.

Key Features of Transparent Polished Sapphire Tube

  • High Transparency: Excellent optical transmission from ultraviolet to infrared ranges (200–5000 nm), making it suitable for optical and laser applications.

  • Extreme Hardness: Mohs hardness of 9 provides superior scratch resistance compared to glass or quartz.

  • Thermal Stability: Withstands temperatures above 1600°C in air, suitable for high-temperature and harsh environments.

  • Chemical Resistance: Inert to most acids and alkalis, ensuring durability in aggressive environments.

  • Precision Polished Surface: Achieves excellent inner and outer surface finish, minimizing scattering and ensuring optical clarity.

Applications of Transparent Polished Sapphire Tube

  • Laser and Optical Systems: As protective sleeves, beam delivery components, or optical windows.

  • Medical Instruments: Used in endoscopy, surgical tools, and diagnostic devices requiring high transparency and biocompatibility.

  • Semiconductor & Electronics: As insulating tubes or protective housings in high-temperature and corrosive environments.

  • Scientific Research: For high-pressure and high-temperature experiments requiring both strength and optical visibility.

Specifications (customizable) of Transparent Polished Sapphire Tube

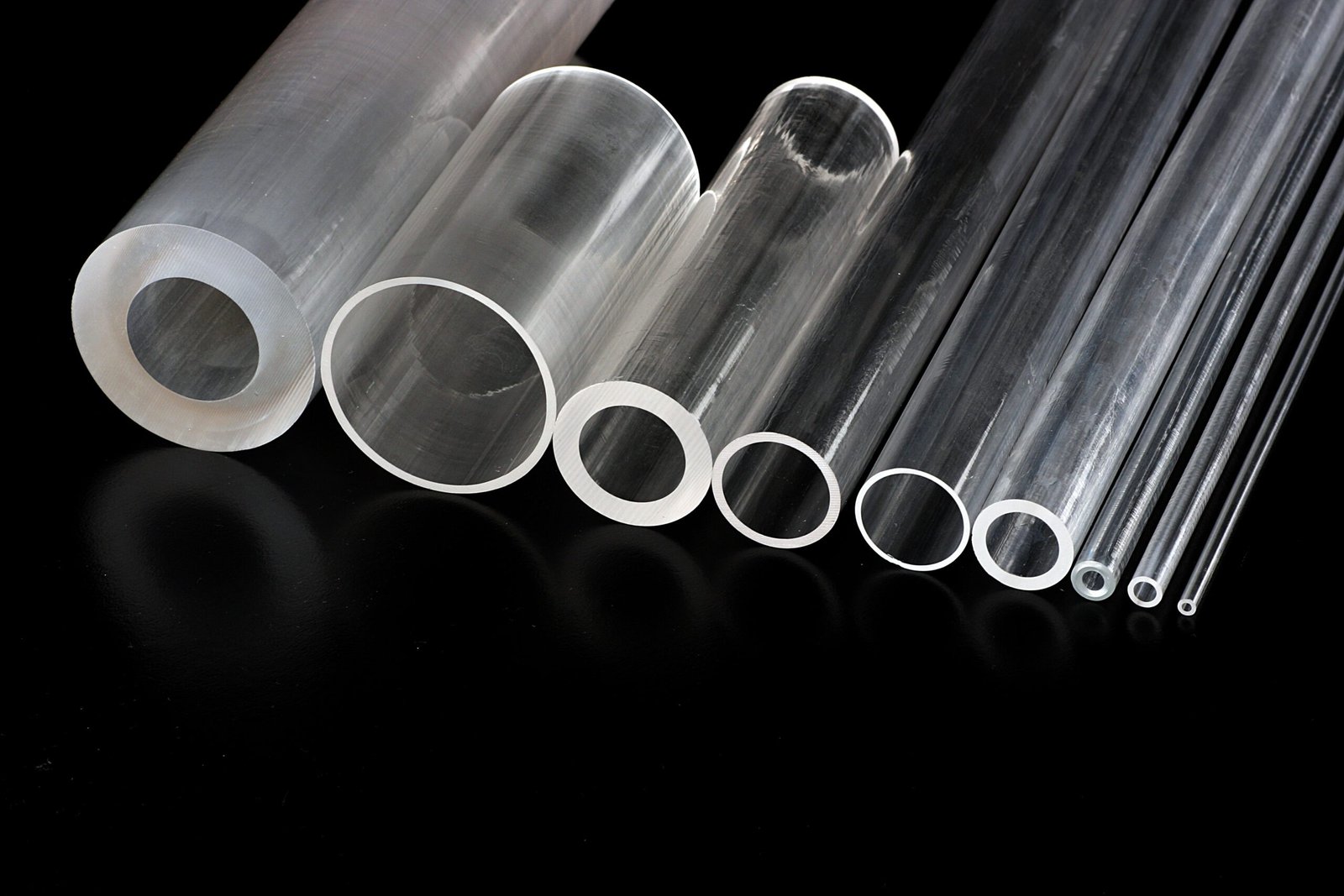

  • Diameter Range: 2 mm – 50 mm

  • Length: Up to 200 mm (longer lengths on request)

  • Wall Thickness: 0.5 mm – 5 mm

  • Surface Finish: Polished inside and outside for maximum transparency

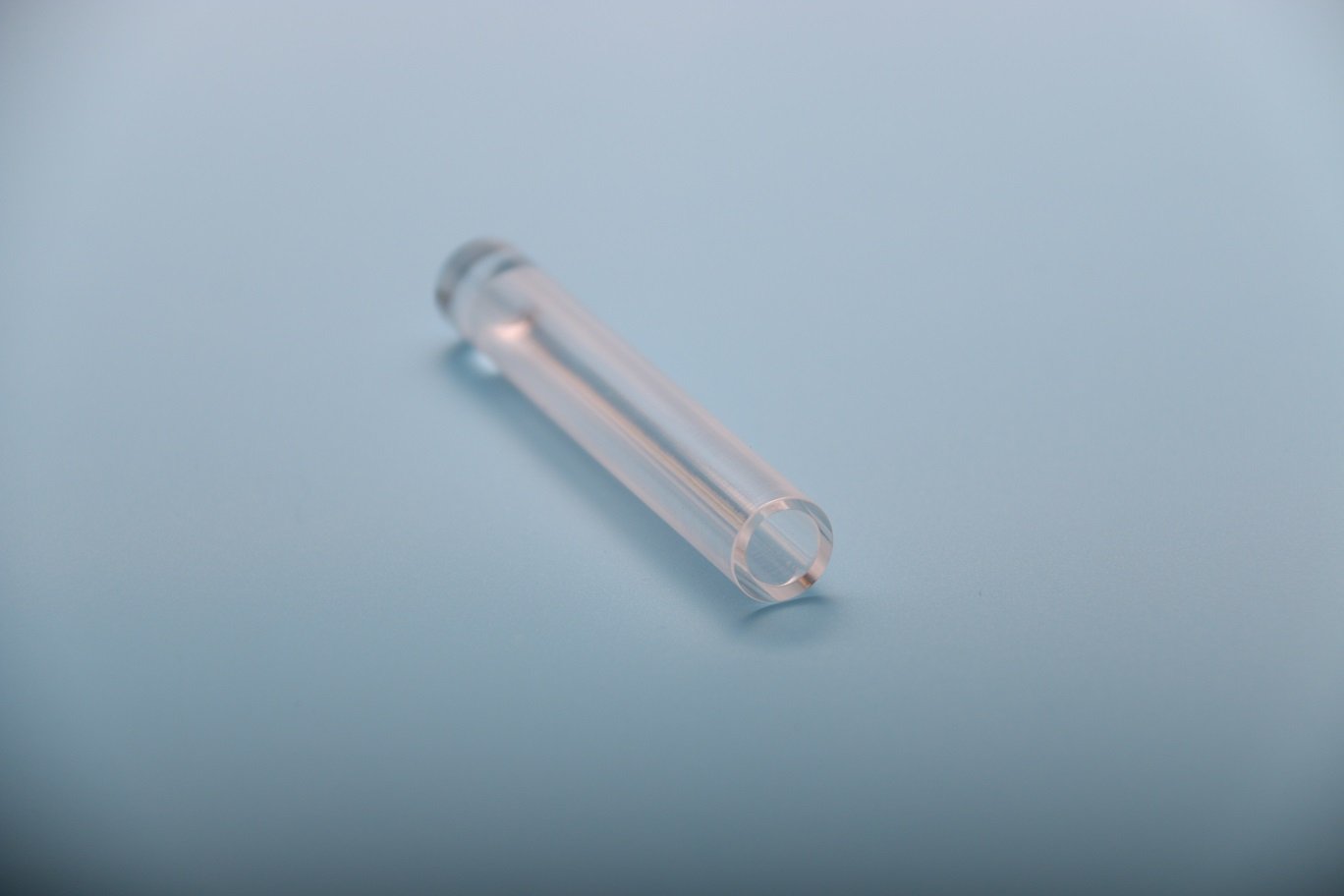

  • Shape Options: Straight tube, open or closed end, according to customer design

Why Choose Us

With advanced sapphire processing capabilities, including CNC machining and precision polishing, we provide custom-made sapphire tubes tailored to your requirements. Our team has extensive experience in sapphire component manufacturing, ensuring high yield, reliable quality, and consistent performance.
