Ceramic Abrasive Belts for Metal and Stone Grinding
Our high-quality ceramic abrasive belts deliver superior performance in various grinding applications. The TS971Y, TS171Y, TS951Y, and TS131Y series stand out for their continuous self-sharpening effects and durable construction, ensuring they meet the toughest industrial standards. These belts are designed to handle rigorous metal and stone grinding tasks, providing excellent results for both flat and curved surfaces.

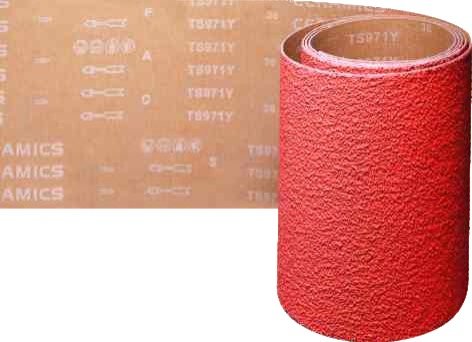

TS971Y – Ceramic Grain with High Heat Dissipation
The TS971Y abrasive belt is designed with a high-quality ceramic grain that continually sharpens during use. This belt features an exceptionally stable Y-Polyester cloth backing, making it ideal for grinding metals with high heat dissipation needs. The close coating of synthetic resin further enhances its performance, ensuring consistent results. The belt is available in widths of 1400mm, with various grit sizes ranging from P16 to P1000.
TS171Y – Ceramic Grain for Ferrous and Non-Ferrous Metals
The TS171Y abrasive belt provides the same advanced ceramic grain technology as the TS971Y, but with a special focus on ferrous and non-ferrous metals. With a Y-Polyester cloth backing and close coating, this belt offers superior tensile strength, wear resistance, and heat dissipation. Its versatility makes it suitable for a wide range of metal grinding applications. The belt comes in widths of 1400mm to 1600mm and is available in grit sizes from P16 to P1000.
TS951Y – Versatile Ceramic Grain for Aluminum and Metal Grinding
The TS951Y abrasive belt is designed for grinding aluminum and other metals. It features a high-performance ceramic grain, which delivers excellent abrasive efficiency. The belt uses a stable Y-Polyester cloth backing and close coating, providing strong resistance against wear and heat. With widths of 1400mm and a range of grit sizes from P16 to P1000, it is suitable for heavy-duty grinding tasks.
TS131Y – Ceramic Abrasive for MDF Fiberboard and Stone
The TS131Y is specifically tailored for grinding MDF fiberboard and stone. It combines the self-sharpening effect of ceramic grain with a specially designed backing material. The Y-Polyester cloth backing ensures that the belt is durable and performs consistently, even under high heat conditions. This belt also features a close coating and is available in a 1400mm width, with grit sizes ranging from P16 to P1000.
Comparison Table
| Product | Grain Type | Backing | Coating Density | Bonding | Manufactured Width | Grit Range |
|---|---|---|---|---|---|---|
| TS971Y | Ceramic | Y-Polyester | Close Coated | Synthetic | 1400mm | P16 – P1000 |
| TS171Y | Ceramic | Y-Polyester | Close Coated | Synthetic | 1400mm/1600mm | P16 – P1000 |
| TS951Y | Ceramic | Y-Polyester | Close Coated | Synthetic | 1400mm | P16 – P1000 |
| TS131Y | Ceramic | Y-Polyester | Close Coated | Synthetic | 1400mm | P16 – P1000 |
These ceramic abrasive belts are ideal for industries where precision and durability are crucial, including automotive, metal fabrication, aerospace, and woodworking. The self-sharpening ceramic grains make them more efficient and longer-lasting compared to traditional abrasives. Choose the right belt for your application to ensure high-quality finishes and increased productivity.
