8-inch N-type SiC Substrate: Specifications and Applications
When it comes to high-performance power electronics, the 8-inch N-type SiC substrate has emerged as a top choice for many industries. Silicon Carbide (SiC) substrates are known for their exceptional properties, such as high thermal conductivity, excellent breakdown voltage, and high efficiency, which make them ideal for power electronics, renewable energy systems, electric vehicles (EVs), and more. In this article, we will dive into the specifications of the 8-inch SiC substrate, highlighting its features, advantages, and various applications.

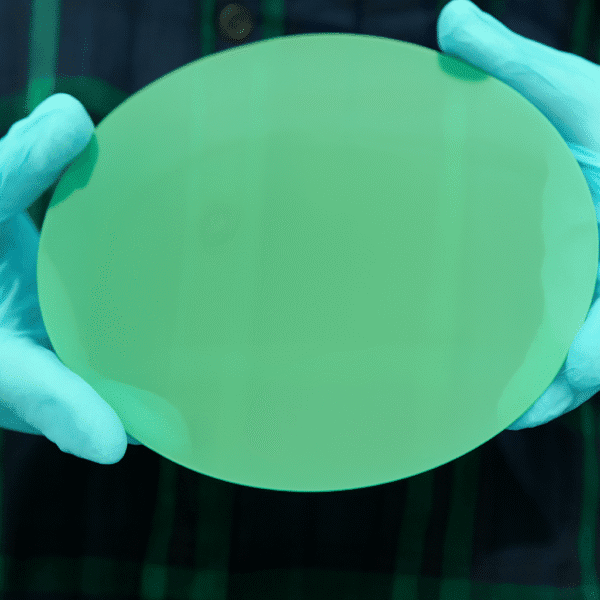

1. Introduction to 8-inch N-type SiC Substrate
The 8-inch SiC substrate is widely used in semiconductor applications due to its superior performance. Unlike traditional silicon-based substrates, SiC substrates allow devices to operate at higher power densities, higher temperatures, and higher frequencies, leading to more efficient and reliable electronics. With an increasing demand for high-performance power devices, especially in automotive and energy sectors, the 8-inch N-type SiC substrate plays a crucial role in shaping the future of modern electronics.
2. Key Specifications of 8-inch N-type SiC Substrate
The 8-inch N-type SiC substrate offers a range of specifications that make it suitable for advanced power electronics. Below is a detailed table outlining these specifications:
| Specification | Details |
|---|---|
| Diameter | 200.0 ± 0.25 mm |
| Thickness | 500.0 ± 25 µm or 350.0 ± 25 µm |
| Dopant | Nitrogen |
| Surface Orientation | 4° toward <11-20> ± 0.25° |
| Notch Depth | 1 ~ 1.25 mm |
| Notch Orientation | Along [1-100] ± 2° |
| Orthogonal Misorientation | ± 2° (V-MOS, MOS, SBD) |
| Edge Profile | A1/A2: 25° ± 5° (350.0 ± 25 µm) A1/A2: 30° ± 5° (500.0 ± 25 µm) |
| Micropipe Density | ≤ 0.1/cm² (V-MOS, MOS, SBD) ≤ 5/cm² (Dummy Grade) |
| Resistivity | 0.015 – 0.025 Ω·cm (V-MOS, MOS, SBD) 0.014 – 0.028 Ω·cm (Dummy Grade) |
| TTV (Total Thickness Variation) | ≤ 5 µm |
| Warp | ≤ 20 µm |
| Surface Roughness | CMP Si Face Ra ≤ 0.12 nm C Face Ra ≤ 0.2 nm |
| Edge Chips | None permitted (≤ 0.5mm) |
| Packaging | Multi-wafer cassette Single wafer container |
These specifications define the high quality and precision of the 8-inch SiC substrate. By understanding these key attributes, businesses can determine the suitability of the SiC substrate for their specific applications.
3. Advantages of 8-inch N-type SiC Substrate
The 8-inch SiC substrate offers several advantages over traditional silicon substrates:
3.1 High Efficiency and Power Handling
SiC-based devices, using 8-inch SiC substrates, provide significantly better efficiency in high-power applications. SiC’s wide bandgap allows devices to handle higher voltage and power without increasing heat generation. This makes the 8-inch SiC substrate ideal for applications that demand high efficiency, such as power inverters, chargers, and more.
3.2 Superior Thermal Conductivity
The SiC substrate exhibits superior thermal conductivity, which enables it to dissipate heat more effectively than silicon-based devices. This property is crucial for reducing the need for complex cooling systems, allowing devices to operate at higher temperatures, thus increasing overall performance and lifespan.
3.3 Longevity and Reliability
With a higher resistance to wear and heat degradation, 8-inch SiC substrates offer an extended operational lifespan. Devices made with SiC substrates tend to have fewer failures and require less maintenance than their silicon counterparts, making them ideal for mission-critical and long-term applications.
3.4 Faster Switching Speeds
SiC devices are capable of switching at much higher frequencies compared to silicon devices. This characteristic is vital in high-speed electronics such as communication systems and high-frequency power conversion, ensuring faster response times and better performance in telecommunications.
4. Applications of 8-inch N-type SiC Substrate
The 8-inch SiC substrate is widely used across several industries. Its ability to handle high power, high frequency, and high temperature applications makes it a key player in many technological advancements.
4.1 Power Electronics
The 8-inch SiC substrate is a vital component in power electronics, used in power devices such as V-MOS, MOSFETs, and Schottky Barrier Diodes (SBDs). These devices benefit from the high voltage and temperature tolerance of SiC, making them suitable for industrial motors, inverters, and other power systems.
4.2 Electric Vehicles (EVs)
In the automotive industry, especially in electric vehicles, the 8-inch SiC substrate is used for power conversion systems like inverters and chargers. With their ability to operate efficiently at high power levels, SiC-based devices help improve the overall performance and energy efficiency of EVs, leading to faster charging, better range, and enhanced driving performance.
4.3 Renewable Energy Systems
The 8-inch SiC substrate plays a critical role in solar and wind power systems. SiC-based power devices improve the efficiency of energy conversion in photovoltaic inverters and grid systems. They help in reducing energy losses, ensuring that more power is transmitted and stored for use in renewable energy networks.
4.4 Telecommunications
SiC substrates are becoming increasingly essential in telecommunications, where high-frequency operation is required. The 8-inch SiC substrate is used in power devices for base stations, 5G systems, and satellite communication technologies. The ability of SiC to perform well at high frequencies and in extreme environmental conditions makes it indispensable for the modern communication network infrastructure.
5. Conclusion
The 8-inch N-type SiC substrate is a powerful material that plays an integral role in high-performance electronics. With its advanced specifications, such as high thermal conductivity, high breakdown voltage, and superior efficiency, the SiC substrate is revolutionizing industries like automotive, renewable energy, and telecommunications.
By understanding the advantages and applications of the 8-inch SiC substrate, manufacturers and engineers can take full advantage of its capabilities to develop the next generation of power devices. Whether in electric vehicles, renewable energy systems, or industrial applications, SiC substrates provide the power, efficiency, and durability required for cutting-edge technology.
As the demand for high-efficiency devices grows, the 8-inch SiC substrate will continue to play a crucial role in driving the future of electronics. With continuous advancements in SiC material technology, the 8-inch SiC substrate will remain at the forefront of semiconductor innovation.
